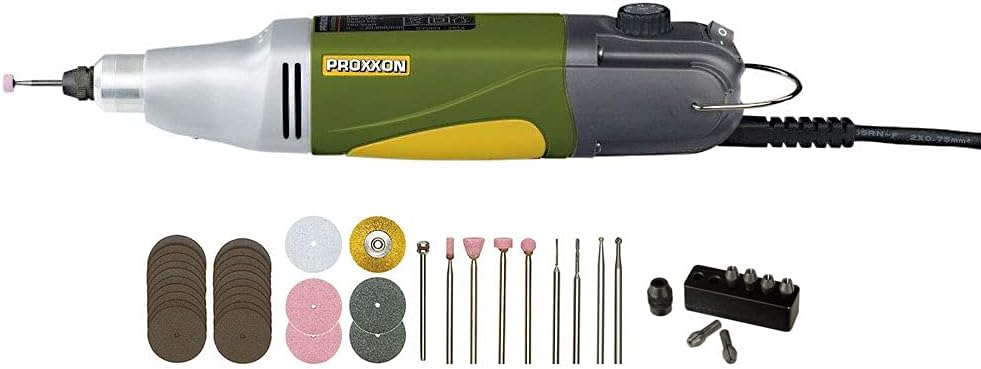

PROXXON Professional Rotary Tool IBS/E, 38481
PROXXON Professional Rotary Tool IBS/E, 38481
Low stock: 2 left
SKU:B001FWXEO6
Couldn't load pickup availability
From the manufacturer
PROXXON Professional Rotary Tool IBS/E, 38481
This high-revving motor has full-wave electronic speed control capable of producing variable speeds between 5,000 and 20,000rpm and is usable for extended periods at a time producing an exceptional power/ weight ratio. The streamlined die-cast aluminum head provides a stable housing for the ground steel spindle. It runs in a ball bearing assembly, minimizing play (max. runout 0.001").
The tool comes with six high concentricity collets sized 1/32", 1/16", 5/64", 3/32", 7/64" and 1/8" (1.0, 1.5, 2.0, 2.4, 3.0 and 3.2mm) along with a collet nut as well as a selection of 34 industrial quality bits and cutters with shanks Ø 3/32" (2.3mm).
Technical data:
Speed 5,000 - 20,000rpm. Volts 110 - 120V AC, 60Hz. Max. Power 1/8hp (100W). Length 9" (230mm). Weight 1.1 lb (500g).
NO 38481
At a glance
- Compact precision machines with aluminum die-cast head. Quiet, precise and efficient!
- Usable for extended periods when grinding, polishing, cleaning, cutting and engraving
- Ideal for mechanics, model builders, jewelers, opticians, artists and electronic enthusiasts
- High-revving motor with full-wave electronic speed control, speeds between 5,000 and 20,000rpm
Ball bearing spindle of ground steel with lock button for rapid cutter changing.
Streamlined head of die cast aluminium for exact bearing seats and optimal stability.
Quiet, powerful 100W motor with full wave electronics for speeds between 5,000 and 20,000rpm.
Complete with 34 bits and cutters of industrial quality with shanks of 3/32'' (2.3mm) and six steel collets.
 Drill Stand MB 200 |  Universal Holder UHZ |  Flexishaft 110/P |  Flexishaft 110/BF |  MICROMOT Tool Clamp |  Footswitch FS | |
|---|---|---|---|---|---|---|
| | | |||||
| Customer Reviews | 372 | 418 | 280 | 595 | 189 | 145 |
| Price | — no data | — no data | $60.04 | $66.98 | $10.50 | $34.68 |
| Description | Head with dovetail guides can be tilted through 90 degrees. Enables bevelled drilling and versatile milling operations. With standard 4/5" (20mm) collar for MICROMOT drilling and milling devices. | Easily clamps to workbenches and tables. Rotates in all directions. The 4/5" (20mm) bore accepts all MICROMOT drills and grinders. | High performance MICROMOT Flexishaft - with triple ball bearings for speeds up to 25,000rpm. With 6 MICROMOT steel collets. | High performance MICROMOT Flexishaft - with triple ball bearings for speeds up to 25,000rpm. With keyless chuck. | The solution for the stationary use of MICROMOT hand-held tools. This tool clamp perfectly fits around the body of our hand-held tools with aluminum-die cast head. | This attachment frees your hands for easy on/off operation. To be used for all machines with a maximum power consumption of 5/8hp (500W) with two prong plugs. |
| Part number | 28600 | 28610 | 28620 | 28622 | 28410 | 38700 |
