• Precision Quality 4"/ 100 Mm Tilting Milling Indexing Rotary Table With Small Chuck, Back Plate & Fixing T Nuts Bolts-metalworking Engineering Machine Tools (With 65 MM 3 Jaw Self Centering)
1 1

Precision Quality 4"/ 100 Mm Tilting Milling Indexing Rotary Table With Small Chuck, Back Plate & Fixing T Nuts Bolts-metalworking Engineering Machine Tools (With 65 MM 3 Jaw Self Centering)

Precision Quality 4"/ 100 Mm Tilting Milling Indexing Rotary Table With Small Chuck, Back Plate & Fixing T Nuts Bolts-metalworking Engineering Machine Tools (With 65 MM 3 Jaw Self Centering)

Low stock: 2 left

B07DLNGKGV

$119.20
$119.20
Sale Sold out
Shipping calculated at checkout.

About this item

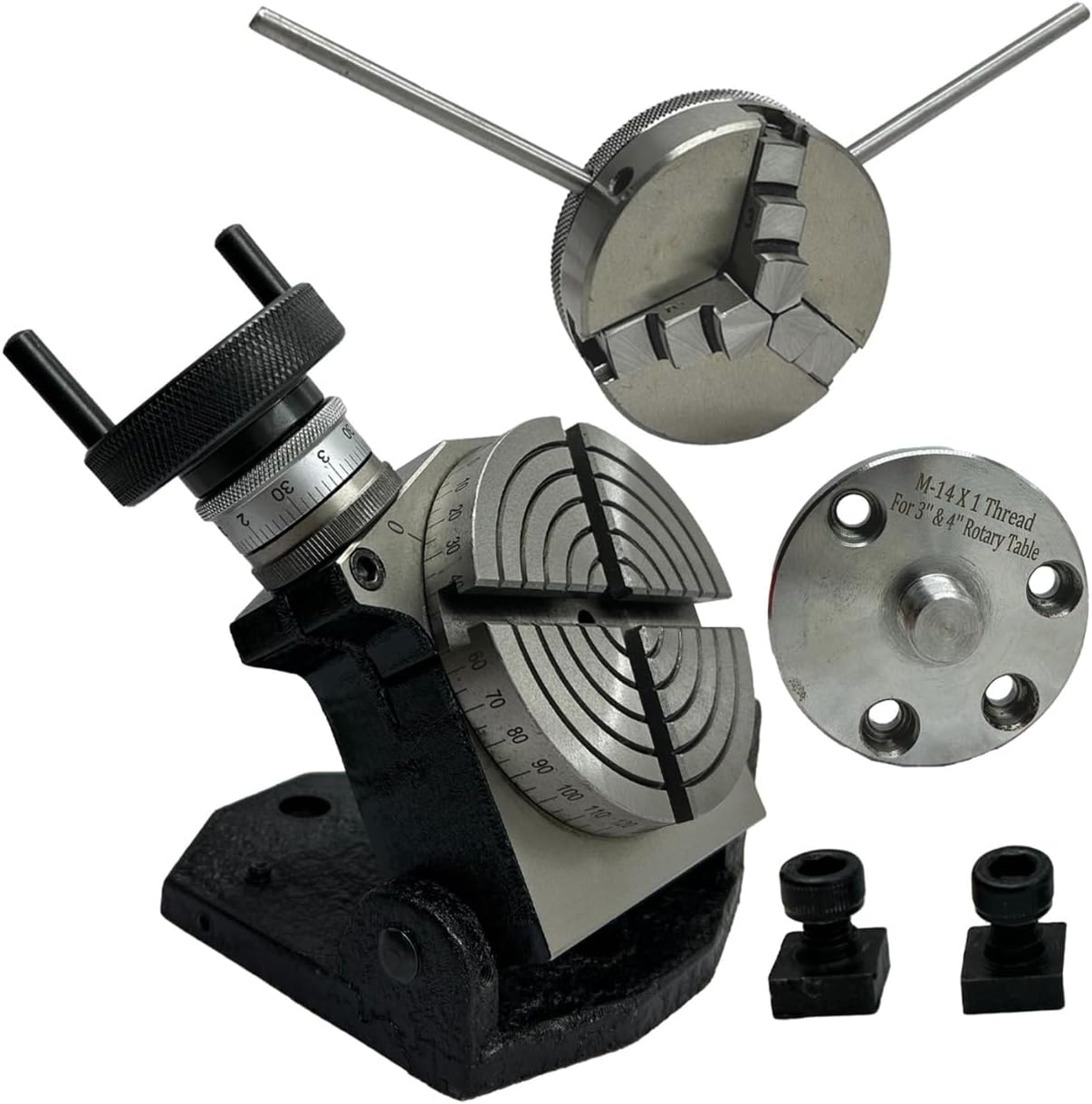

  • Precision Quality 4" /100 MM Tilting Rotary Milling Indexing Rotary Table
  • Features To Tilt And Locked At Any Angle From 0 To 90 Degrees.
  • Worm Gear Ration Is 1:36 Which Means That 1 Handle Rotation Shall Turn The Table By 10 Degrees.
  • Supplied With A 65 MM 3 Jaws Self Centering Small Chuck With Back Plate & Fixing T Nuts Bolts

Features to tilts between 0- 90 degrees & can be locked at any position. Table diameter 100 mm table is graduated 360 degrees. Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees. Center height in vertical position: 2-5/8" (66 mm approx.) hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in horizontal & vertical position. Supplied with a suitable small 65 mm 3 jaws self centeing chuck with back plate & fixing t nuts bolts. 65 mm 3 jaws self centering chuck m14 x 1 mounting thread back plate also has m14 x 1 thread spigot to mount the chuck on it. Back plate is drilled in a manner that it can be fitted both for 3 as well as 4 slot rotary table. Suitable t -nuts are also supplied.
