KNIPEX Tools - 8 Piece Circlip Pliers Set (001958V01)
KNIPEX Tools - 8 Piece Circlip Pliers Set (001958V01)
Low stock: 2 left
SKU:B07Q9X31D5
Couldn't load pickup availability
From the manufacturer
Knipex - Made in Germany

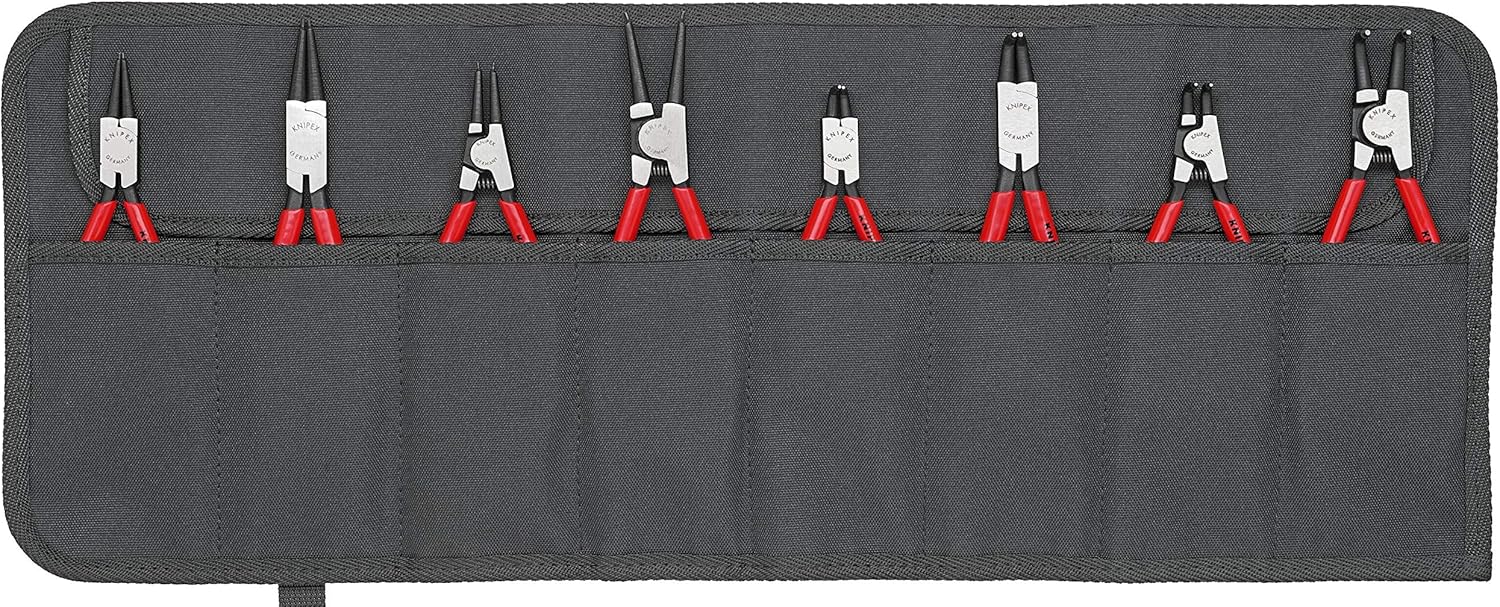

8 Pc Snap Ring Pliers Set in Tool Roll
Knipex Tools - 00 19 58 V01 - 8 Piece Industrial Circlip Pliers Set
The KNIPEX Snap Ring Pliers Set is a comprehensive and high-quality tool kit designed specifically for working with circlips or snap rings. The set has both internal and external snap ring pliers. These pliers features precise tips or jaws that securely grip the circlips, allowing for easy installation or removal. This set includes a tool roll with two (2) of each Internal Snap Ring Pliers and External Snap Ring Pliers and two (2) of each Internal Angled Snap Ring Pliers and External Angled Snap Ring Pliers. Tips are forged as one part of the tool. Solid style, forged. Non-slip, straight and 90˚ angled solid tips. 44 11 J1 (5 1/2"), 44 11 J2 (7"), 44 21 J11 (5"-90° Angled) and 44 21 J21 (6 1/2"-90° Angled) - Internal Snap Ring Pliers-Forged Tips. Internal circlip pliers for installing or removing circlips in bore holes. For fitting snap rings into bores ranging from 15/32" - 2 23/64".
46 11 A1 (5 1/2"), 46 11 A2 (7 1/4"), 46 21 A11 (5 1/4"-90° Angled) and 46 21 A21 (6 3/4"-90° Angled) - External Snap Ring Pliers-Forged Tips. External circlip pliers for installing or removing circlips on shafts. For fitting snap rings on shafts, ranging from 25/64" - 2 23/64".
Eight pocket tool roll constructed of hard-wearing polyester fabric offers a convenient way to store tools when not in use. Sewn pocket for each tool so tools remain secure and adjustable snap closure.
Specifications:
- Tool Set Length: 9.17"
- Tool Set Width: 4.49"
- Tool Set Height: 3.15"
- Tool Set Weight: 1.477 Pounds
44 11 J1
- Tool Nominal Length: 5.5"
- Tool Width: 1.95"
- Tool Height: 0.5"
- Tool Weight: 0.2 Pounds
- Tip Width: 3/64"
- Circlip - Internal Bore Size - inches: 15/32" to 1"
44 11 J2
- Tool Nominal Length: 7.25"
- Tool Width: 1.85"
- Tool Height: 0.55"
- Tool Weight: 0.3 Pounds
- Tip Width: 5/64"
- Circlip - Internal Bore Size - inch: 3/4" to 2 23/64"
44 21 J11
- Tool Nominal Length: 5.12"
- Tool Width: 1.95"
- Tool Height: 0.75"
- Tool Weight: 0.2 Pounds
- Tip Width: 3/64"
- Circlip - Internal Bore Size - inches: 15/32" to 1"
44 21 J21
- Tool Nominal Length: 6.5"
- Tool Width: 1.75"
- Tool Height: 0.9"
- Tool Weight: 0.3 Pounds
- Tip Width: 5/64"
- Circlip - Internal Bore Size: 3/4" to 2 23/64"
46 11 A1
- Tool Nominal Length: 5.5"
- Tool Width: 1.25"
- Tool Height: 0.65"
- Tool Weight: 0.195 Pounds
- Tip Width: 3/64"
- Circlip - External Shaft Size - inches: 25/64" to 1"
46 11 A2
- Tool Nominal Length: 7.25"
- Tool Width: 1.6"
- Tool Height: 0.65"
- Tool Weight: 0.295 Pounds
- Tip Width: 5/64"
- Circlip - External Shaft Size - inches: 3/4" to 2 23/64"
46 21 A11
- Tool Nominal Length: 5"
- Tool Width: 1.3"
- Tool Height: 0.75"
- Tool Weight: 0.195 Pounds
- Tip Width: 3/64"
- Circlip - External Shaft Size - inches: 25/64" to 1"
46 21 A21
- Tool Nominal Length: 6.75"
- Tool Width: 1.4"
- Tool Height: 0.95"
- Tool Weight: 0.295 Pounds
- Tip Width: 5/64"
- Circlip - External Shaft Size - inches: 3/4" to 2 23/64"
