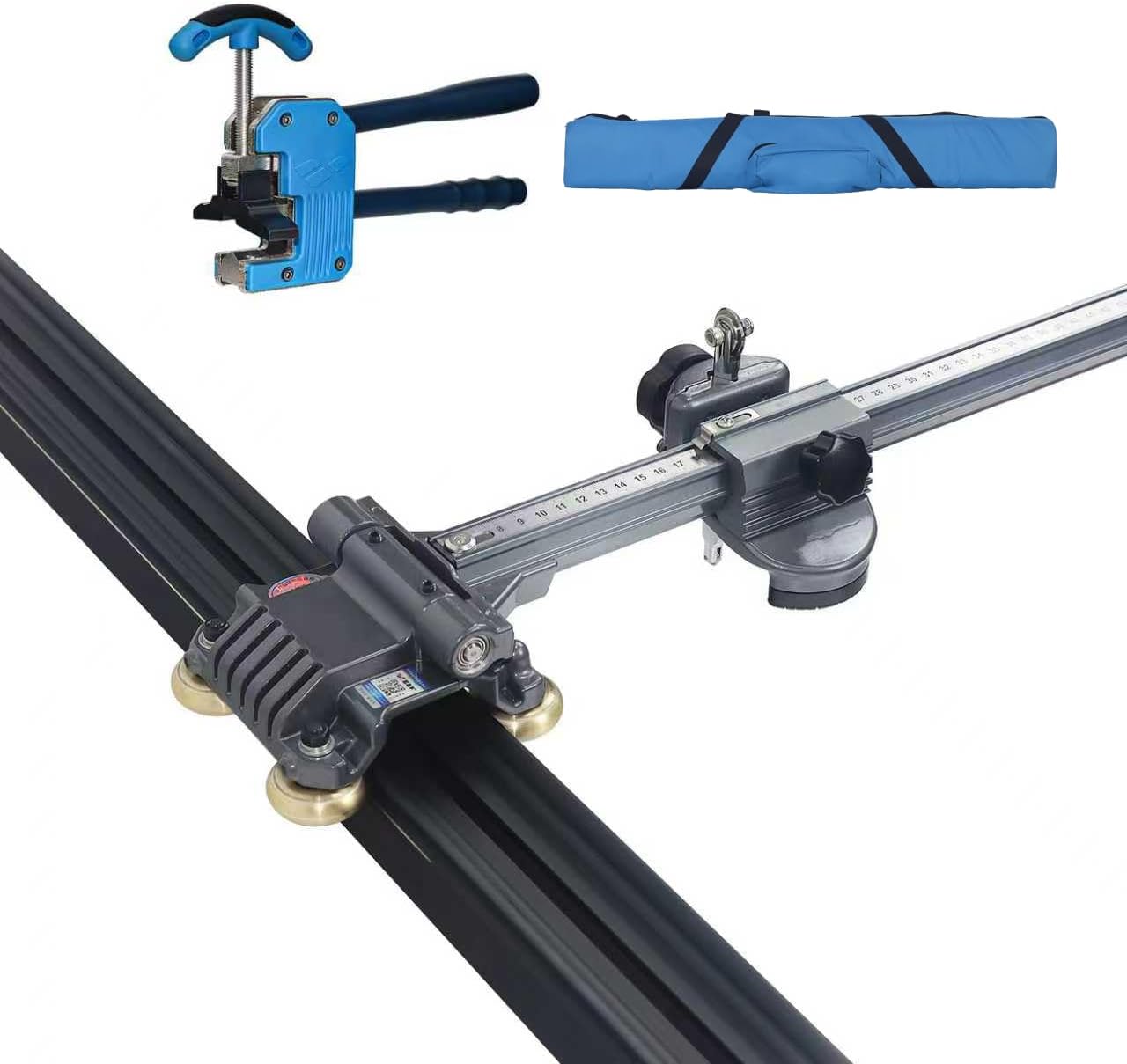

78.7-inch manual large tile cutter,With Tile Breaking Pliers,High-Precision Tile Cutter Tool
78.7-inch manual large tile cutter,With Tile Breaking Pliers,High-Precision Tile Cutter Tool
Low stock: 2 left
SKU:B0DB573H8K
Couldn't load pickup availability
Product description
Step1
Clamp the workbench into the rails.
Needs a board for a more stable cutting area (which isn't provided)
Step2
Use a ruler or other tool to test whether the guide rail is parallel to the workbench to avoid errors
Step3
Place the power arm into the guide rail
Step4
Use the size tool as shown to fix the cutting size
Step5
Place your hands as shown in the picture. This will allow the blade to bear more force and cut thicker tiles more easily.
Step 6
Lift one end of the tile to allow for support and then open it with the tile opener.
NOTE: Failure to lift the tile when opening it may cause the tile to crack during the cut.
NOTE: The arrow part of the porcelain cutter should be aligned with the tile cutting line
Product Comparison
 78 In Large Tile Cutter |  78 In Large Tile Cutter |  48 In Large Tile Cutter |  35.4-Inch Tile Cutte | |
|---|---|---|---|---|
| Customer Reviews | 2 | 11 | — | 2 |
| Price | $179.00 | $219.00 | $359.00 | $109.00 |
| Maximum cutting length | 70 Inch | 70 Inch | 48 Inch | 35.4 Inch |
| Maximum cutting thickness | 3-15mm | 3-15mm | 4-20mm | 3-12mm |
| Laser assist function | No | No | Yes | No |
| Blade wheel Inner diameter | 5mm | 6mm | 6mm | X |
| Blade wheel outer diameter | 22mm | 22mm | 22mm | 8mm |
| Blade wheel material | Carbide YG6X | Carbide YG6X | Carbide YG6X | Tungsten steel |
| Weight（Including carton） | 8.5Kg | 9Kg | 18.3Kg | 2.2Kg |
