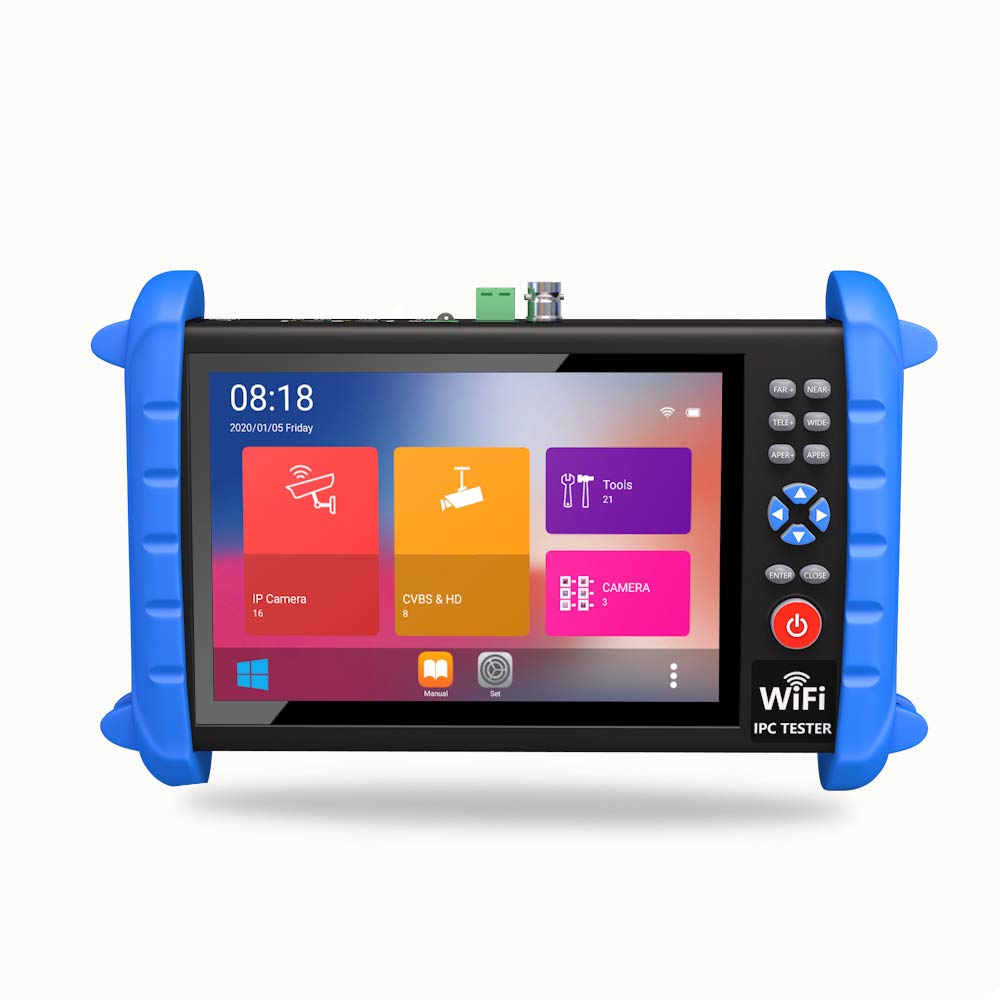

• 7 Inch IP Camera Tester Security CCTV Tester Monitor-Support 6K IP/Coax/Analog Camera-with HDMI in&Out/Power Output/PTZ Control/IP Searching/Network Tool
1 1

7 Inch IP Camera Tester Security CCTV Tester Monitor-Support 6K IP/Coax/Analog Camera-with HDMI in&Out/Power Output/PTZ Control/IP Searching/Network Tool

7 Inch IP Camera Tester Security CCTV Tester Monitor-Support 6K IP/Coax/Analog Camera-with HDMI in&Out/Power Output/PTZ Control/IP Searching/Network Tool

Low stock: 2 left

B08DFMLP69

$207.99
$207.99
Sale Sold out
Shipping calculated at checkout.

Product description

5k ip camera tester

Support HD camera Testing:TVI 8MP(3840*2156 15P), CVI 8MP(3840*2156 15P), AHD 8MP(3840*2156 15P). Support IP camera max up to 6K and Analog camera.

7 inch cctv tester with screen resolution: HD IPS 1920 × 1200, instant image transmission.

Compatible with Onvif standard protocol, compatible to most cameras in the market.

IP discovery tool, it is used to scan the whole network segment IP, and auto-modify tester’s IP address.

Open source, can install Android software. 6K H265, H264, MPEG4 network camera main stream test.

Open source, can install Android software. 4K H265, H264, MPEG4 network camera main stream test.

Network cable TDR test function can display cable length, attenuation, quality, reflectivity, impedance parameters.

battery power

Rechargeable 7000mA / 7.4V polymer lithium battery. Working hour:6~10 hours.

LCD Screen 7 inch resolution 1920 × 1200 IPS HD full view
Ethernet Port 10/100/1000M adaptive
WIFI Built-in wireless WIFI, speed 150M
IP Camera Test 4K H.265 IP camera test, video image real-time display without delay, support video snapshot, recording and playback
ONVIF ONVIF tool, support DAHUA, HIKVISION, ACTI, SAMSUNG and other more than 30 manufacturer private protocols and customized, support camera mobile client installation
PTZ Control Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols
CVBS Analog Camera Test 1 channel CVBS analog signal input, support PAL/NTSC format adaptation
DC12V Power Output DC12V power output, max current 3A, provide temporary power for cameras
DC24V Power Output DC24V power output, max current 1A, provide temporary power for cameras
PoE Power Output 48V standard PoE output, provide PoE power for cameras
DC5V Power Output Provide temporary power for USB-powered cameras or emergency power for mobile phones, max current 2A
HDMI Video Input Test Input HD video image into instrument to test video recorder
Power Charger DC 12V/2A
Battery Built-in 7.4V polymer lithium battery, capacity 7000mAh, can work continually for 8-10 hours
Language Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
ip camera tester

Support PoE 48V, DC5V 2A, DC12V 3A,DC24 1A output.

network cctv tester

RS485 Port: Receive, send and analyze data, used for PTZ protocol analysis, etc. Network tools: to scan all the IP address in the network, and test current network condition and PING value.

Support wireless WIFI(10M/100M/1000M) and hotpots, easily connect and test wireless WIFI camera.

IP discovery tool, it is used to scan the whole network segment IP, and auto-modify tester’s IP address.

View full details
