About this item

• Chuck Outside Diameter:5"; Plain Back,Recessed 3.740" x 0.184" Deep;
• 3 Mounting hole on Chuck:Diameter 0.35", Bolt Patten 4.25"; 3 Mounting screw hole on back plate: M8 and already drilled and tapped;

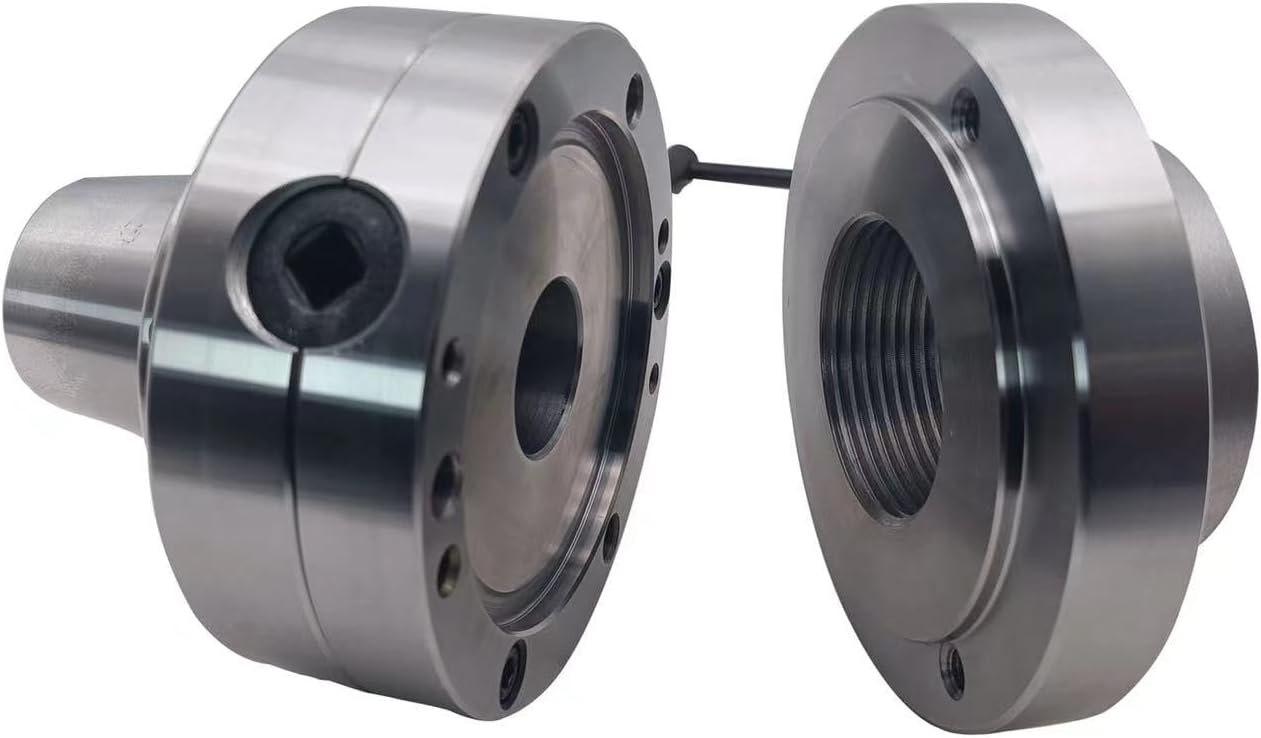

• Comes with a semi-finished back plate (1-3/4" x 8 Threaded) exactly as our picture show . The mounting holes are already drilled and tapped.Customer just need to use their own lathe to lightly surface the front surface and turn very little on the registration boss according to the actual recess of the chuck, then bolt the two parts together with the included bolts. This work just like assembly a 3-jaw chuck with a new back plate. As this final assembly work is done on your own, final use lathe, usually can reach the highest TIR accuracy;
• Our 3 Pinion Gears Operated Design is not only easy the Open and Close, but also assures higher accuracy than 2 Pinion Gears（ in most of the market）；
• Max.RPM 6000; Accuracy: 0.0006 TIR; Can Use Any Size 5C Collet From 1/16 through 1-1/8";
• We are manufacturer,for various specifications 5c collet chuck,we have over 20 years manufacturing experience.

1, Each 5c collet chuck by precision pneumatic testing and meets product accuracy standards; But in actual use of this product, customers need to consider "actual accuracy of each 5C collet", and "actual runout of the lathe spindle";
2,Our "3 Pinion Gears" Operated Design not only easy the Open and Close, but also assures higher accuracy and higher stability than 2 Pinion Gears chuck in most of the market;
3, For 5C COLLET CHUCK, we have over 20 years of manufacturing experience, please trust your choice,thank you.
