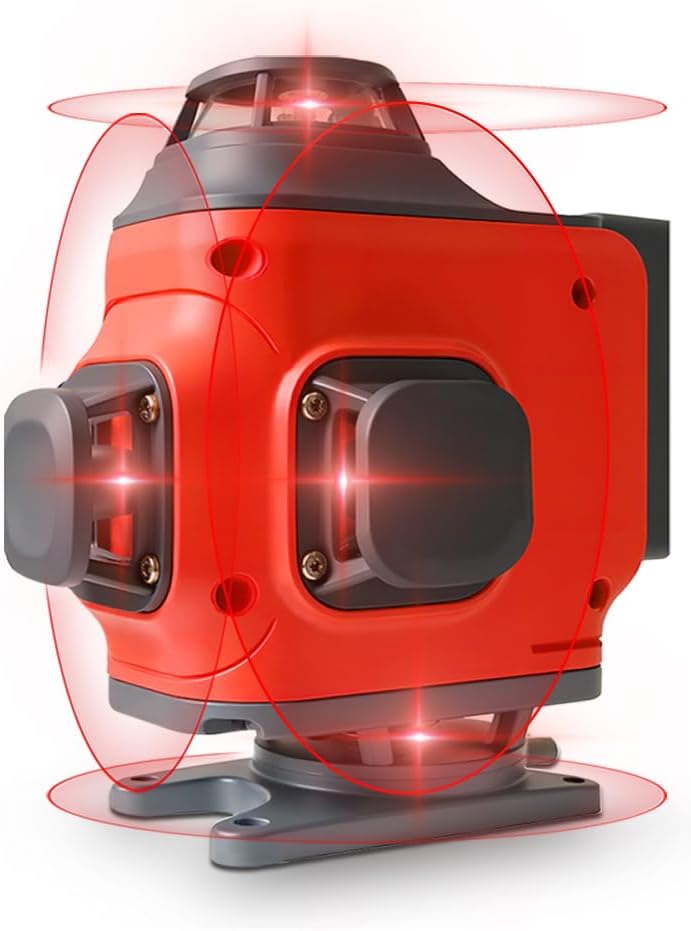

• 4D 16 lines laser level 4×360° self leveling Precision Cross Line level tool Two 360° Vertical and Horizontal Red beam with hand wave mode control Rotary laser level (4D 16 Red Lines)
1 1

4D 16 lines laser level 4×360° self leveling Precision Cross Line level tool Two 360° Vertical and Horizontal Red beam with hand wave mode control Rotary laser level (4D 16 Red Lines)

4D 16 lines laser level 4×360° self leveling Precision Cross Line level tool Two 360° Vertical and Horizontal Red beam with hand wave mode control Rotary laser level (4D 16 Red Lines)

Low stock: 2 left

B0DMZW2KN8

style_name
$159.20
$159.20
Sale Sold out
Shipping calculated at checkout.

Product description

Features:

MusuInt 4D Laser Level GT16

The 4D crosshair for building/picture hanging has three control modes: button control, sensor control and remote control. It is easy to operate and can be used conveniently and quickly with work.

Function description:

A: Button control

1. Touch the panel H key to control the horizontal line on and off

2. Touch the panel V key: press once to turn on the first vertical window light; touch the V key once for the second time to turn on the second vertical window light; touch the V key once for the third time to turn on the two vertical window lights at the same time; touch the V key once for the fourth time to turn off the two vertical window lights at the same time;

3. High-frequency flashing function: press and hold the H key for 3 seconds, and enter the flashing mode after hearing the "beep" sound; press and hold the H key for 3 seconds again to turn it off;

4. Diagonal line function: press and hold the H key for 6 seconds, and hear two "beeps" to turn on the diagonal line function. The laser tool can be placed at any angle for alignment, and the light will not flash to alarm. Press and hold the H key for 6 seconds again, and hear two "beeps" to enter the diagonal line mode.

5. The battery is a digital high-capacity rechargeable lithium battery with a battery life of about 2 days. Two pieces are standard.

B: Induction control

Press and hold the V key on the touch panel of the machine. After hearing a "beep", the induction mode is turned on. At this time, wave your palm 20mm above the machine to control the light switch without touching the button.

C: Remote control

1. The H key is for turning the horizontal light on and off. Long press the H key to increase the light brightness. If the light has been adjusted to the brightest, long press is invalid;

2. The V key is for turning the vertical light on and off. Long press the V key to reduce the light brightness. If the light has been adjusted to the darkest, long press is invalid;

3. OUT key, short press to turn on and off the high-frequency flashing mode; long press to hear a "beep" sound to turn on the diagonal line mode, long press again to hear a "beep" sound to turn off the diagonal line mode

Q

Can be used under sunlight

✔️ The laser adopts LD red laser unit.

✔️ The MUSU laser level can be used outdoors under sunlight, and the laser line quality is optimal when used at a distance of approximately 5 meters (16 feet). Approximately 1 millimeter (0.04 inches). In this case, laser lines similar to machines are almost invisible.

✔️ The laser level is also equipped with a pulse mode, which can be turned on or off by short pressing the "OUTDOR" button. When this mode is turned on, the pulse mode expands the laser range to 200 feet. We need a laser receiver.

1

Adiustable light thickness Can be as fine as 1mm

  • Selected high-quality lasers,at the best distance and ambient brightnessThe light can be as thin as 1mm

2

Remote sensinghand swing control

  • Innovative remote sensing features allow youto control light without touching the machine
  • Long press the V keyHand swing control
  • Wave your hand left and right at the topof the instrument to automatically switch modes

3

360° rotatable base

  • Compared to ordinary machines,GT comes with a rotatable base,making construction more convenient

4

Diagonal function

  • Equipped with a tripod,it can make diagonal lines at any angle

1

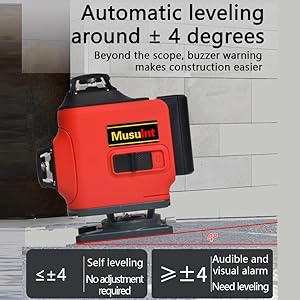

Automatic levelingaround + 4 degrees

  • Beyond the scope, buzzer warningmakes construction easier
  • ±4°≤Self levelingNo adjustmentreguired
  • ±4°＞Audible and visual alarmNeed leveling

7

Ultra strong LD red laserBrighter and more stable

  • Every 10 lasers on averageOnly 1 meets the productionrequirements of Mu Su
  • Finer/Brighter/More stable

2

Light Diagram

16 line rendering

2 horizontal windows

2 vertical windows

(Cross hairs on theground and roof)
