Product description

35T/250KN HYDRAULIC HOLE PUNCHING TOOL
GREAT PUNCHIGN CAPACITY

LFGUD

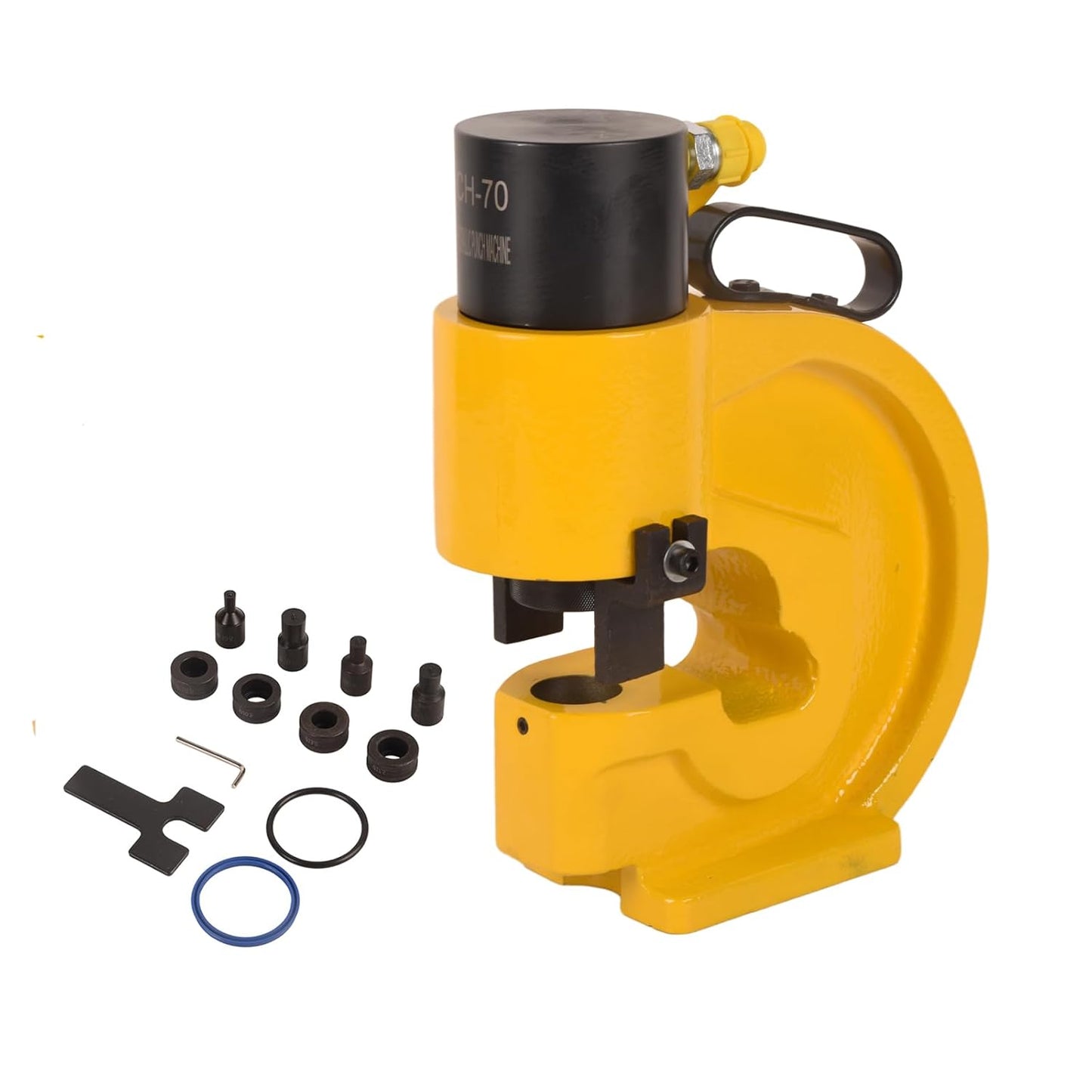

Packing List

  • 1 x Puncher
  • 1 x Concave pressing plate
  • 4 x Dies(one of them is in the puncher)
  • 1 x Allen wrench
  • Several Sealing Rings

LFGUD 35T/350KN Hydraulic Hole Punching Tool (CH-70)

Heavy Duty Specifications

  • Punching Force: 350KN / 35T
  • Depth of Throat: 4.3"
  • Aperture(4 pairs): 3/8''(Φ10.5mm), 1/2''(Φ13.8mm), 5/8''(Φ17.5mm), 3/4''(Φ20.5mm)
  • Max. Thickness of Iron Plate: 1/10" to 2/5" (3-10 mm)
  • Max. Thickness of Copper Bar: 1/10" to 1/2" (3-12.7 mm)
  • Max. Thickness of Aluminum: 1/10" to 1/2" (3-12.7 mm)
  • Max. Thickness of Stainless Steel: 1/10" to 3/10" (3-8 mm)
  • Package Size: 15.4 x 8.1 x 13 inch / 39 x 20.5 x 33 cm
  • Package Weight: 74.3 lbs / 33.7 kg

  • Great Punching Capacity
  • Alloy Steel Construction
  • Smooth Hole Punching
  • Portable Design

PORTABLE DESIGN

Portable Design

This hydraulic hole puncher features thickened and insulated handle makes itself easy to carry with, bringing a more comfy and safer user experience, suitable for long time use.

PRODUCT DETAILS

4 PAIRS OF DIES

The punching force of this hydraulic hole punching tool is as strong as 35T/350KN, and comes with four pairs of high quality punching dies of 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm),which are not easy to wear off.

3/4'' Depth of Throat

3/4" Depth of Throat

This hydraulic hole punching tool has a deep throat of 4.3"/109 mm, allowing you to put a wide plate in.And it punches quite smooth holes on iron plates of 1/10" to 2/5" (3-10 mm) thickness, aluminum / copper plates of 1/10" to 1/2" (3-12.7 mm) thickness, stainless steel plates of 1/10" to 3/10" (3-8 mm) thickness, and other metal plates.

CAN BE USED WITH

Recommended Hydraulic Pump for This Punching Tool

CP-700LB Hydraulic Hand Pump
CP-700B Hydraulic Hand Pump
Customer Reviews
5.0 out of 5 stars 4
5.0 out of 5 stars 4
Price $139.95 $189.95
Oil Capacity 900cc 900cc
Operation Pressure 20-700bar/290-10000psi 20-700bar/290-10000psi
High pressure 2.3cc(Oil Output Per Stroke) 2.3cc(Oil Output Per Stroke)
Low pressure 13cc(Oil Output Per Stroke) 13cc(Oil Output Per Stroke)
Oil Pipe Length 5.9ft/1.8m 5.9ft/1.8m
Connector ZG3/8" female quick connector ZG3/8" female quick connector
Material Aluminum Alloy Steel
Package Dimension 29.3 x 7.3 x 7.5 inch / 74.5 x 18.5 x 19 cm 28.7 x 7.09 x 7.5 inch / 73 x 18 x 19 cm
Package Weight 24.5 lbs / 11.1 kg 30.86 lbs / 14 kg
