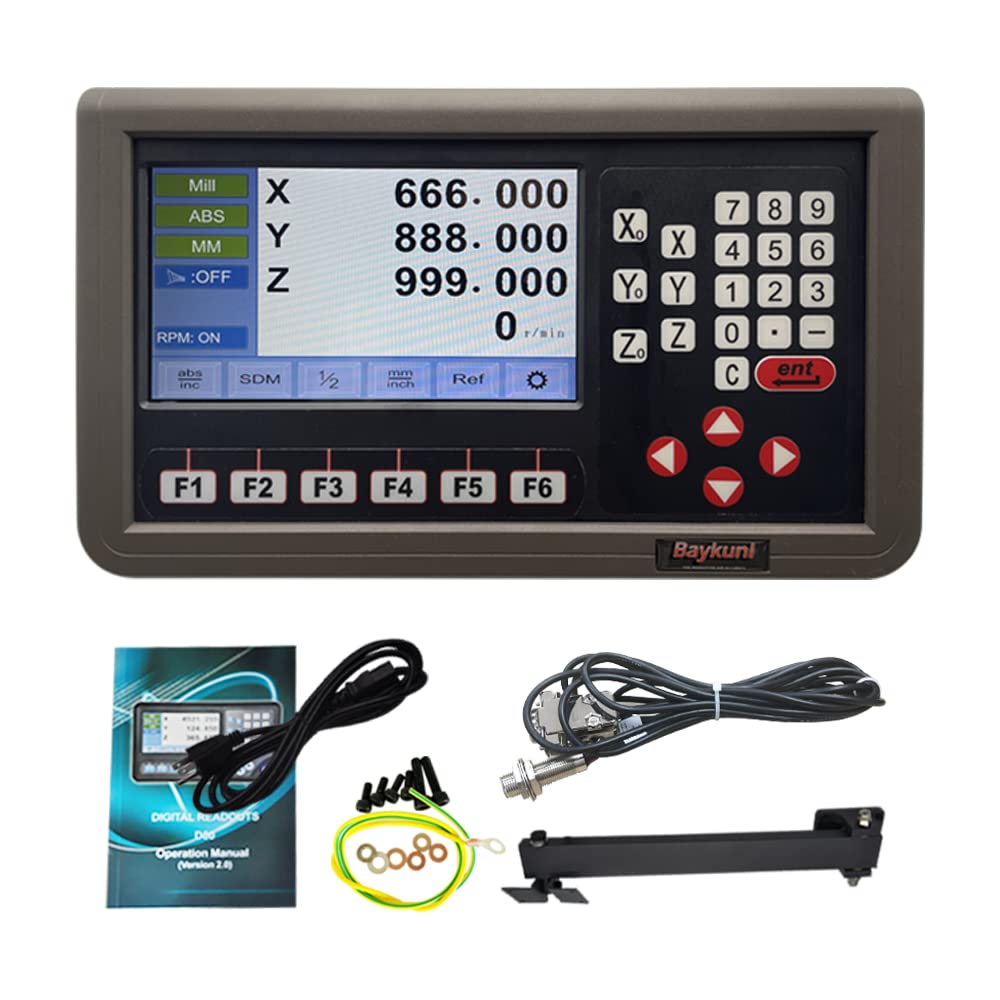

• 3 Axis DRO LCD Screen Metal Shell Digital Readout Display for Bridgeport Mill MIlling Machine Lathe Machine Tools (D80M-3V RPM Hall Sensor)
1 1

3 Axis DRO LCD Screen Metal Shell Digital Readout Display for Bridgeport Mill MIlling Machine Lathe Machine Tools (D80M-3V RPM Hall Sensor)

3 Axis DRO LCD Screen Metal Shell Digital Readout Display for Bridgeport Mill MIlling Machine Lathe Machine Tools (D80M-3V RPM Hall Sensor)

Low stock: 2 left

B09MW957PY

model
$180.00
$180.00
Sale Sold out
Shipping calculated at checkout.

Product description

DRO
3 Axis DRO Digital Readout / 2 Axis DRO Digital Readout

Order included

  • 1* 2 Axis / 3 Axis DRO LCD digital readout ONLY
  • 1* USA plug
  • 1*user manual
  • Bracket for Mahince
  • All of installation accessory

2 Axis DRO

Technical Parameters:

--D80M Metal Case LCD DRO

●Voltage Range:AC80V-260V/50HZ-60HZ

●Power Dissipation:15W

●Working Temperature:-10℃~60℃

●Operating Keypad:Mechanical Keypad

●Input Signal:5V TTL/RS422

●Input Frequency:≤4MHZ

●Resolution:0.1μm 0.2μm 0.5μm 1μm 2μm 2.5μm 5μm 10μm 50μm

  • High Quality
  • High Performance
  • Long Service Time
  • Wide Application
  • US Stock

Digital Readout Function

INTELLIGENT FUNCTIONS

- The digital readout display meter system is equipped with a variety of intelligent functions: SDM 200 sets memory, bevel processing, power-off memory, circumference drilling, oblique line drilling, 1/2 centering, also a calculator is equipped for more convenient usage.

Digital Readout DRO INNER PARTS

HIGH INTERGRATION

Meanwell Power supply ,Omran Key button.Switch on& Switch off can meet more than 100000 times.

Back of DRO

HIGH QUALITY

The grating digital display body is made of high-quality Aluminum alloy which has high reliability and durability, corrosion resistance, and scratch resistance.

We provide the spare fuse on the back of the digital display.

Menu

HIGH PERFORMANCE

Built in help function, freeing hands from paper manuals.Multi-language operation interface, easy to use.

Fuction List

Saving the Drawing function & Displaying the tool's current position

1 :Special previewing the drawing function,after setting well the parameter,the Dro will display the machined well effect which makes the operating be ,ore visual

2 :Displaying the tool' s current position function,during the machining,the system will display the tool' s current position according to the drawing which makes the machining be much more easier.

2 Axis DRO

Basic Funtion 1

  • Zeroing,Data Recovery
  • Value Inputting
  • Metric and Imperial Switching
  • Power off memory,Encoder
  • Selection(Rotary or Linear)
  • Linear Compensation,Non-linear Compensation
  • Calculator
  • Counting Direction
  • Setting,ABS/INC Coordinate
  • 200 sets of SDM Coordinates

3 Axis DRO Digital Readout / 2 Axis DRO Digital Readout

Basic Funtion 2

  • REF Centering
  • PLD Function
  • PCD Function
  • Simple R function
  • Smooth R Function
  • Radius/Diameter switching
  • Axis summing
  • Digital Filtering Function

4 Axis DRO Digital Readout

Basic Funtion 3

  • Taper Measuring Function
  • Bevel Function
  • Rectangle Chambering Function
  • Rotational Speed Measurement
  • Linear Measuring Basing Rotary Encoder
  • 16 sets of Tool Memory
  • Dynamic Graphics
  • Preview Drawing

For Lathe Machine /Milling Machine

Optional Function

  • RS232
  • RPM
  • EDM
